H11 vs 9005 : What‘s the Difference?

Is the only difference between your high beams and low beams the angle? Or is there a deeper mechanical reason? If you are looking to upgrade your headlights, you’ve likely encountered the H11 and 9005 (HB3) bulb types.

The Short Answer: No, H11 and 9005 are not interchangeable. While they both share an L-shape design, they differ in plug spacing, locking tabs, and light output. Typically, the H11 is your go-to for low beams/fogs, while the 9005 is the powerhouse for high beams.

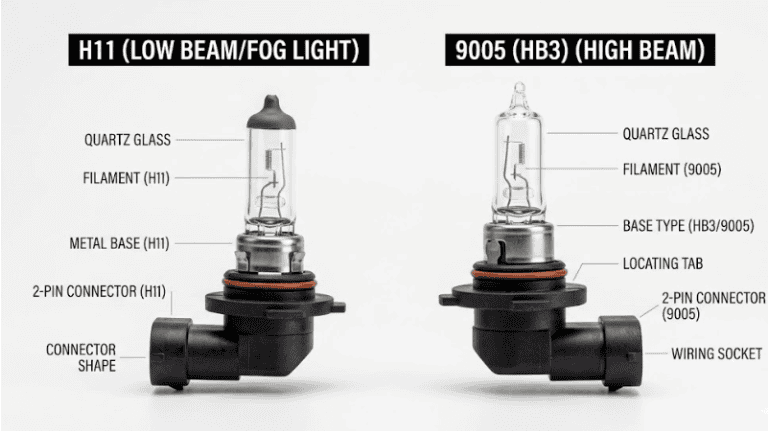

Are H11 and 9005 the Same Bulb?

H11 and 9005 (HB3) cannot be used interchangeably. They are NOT the same and cannot be used as substitutes. They differ in housing design, connector type, and intended applications.

Key Differences: Can They Be Swapped?

Here is the quick comparison: H11 vs. 9005 (HB3) Technical Specifications

What are H11 and 9005 Bulbs in detail?

1. H11 Bulb Characteristics

The H11 is a popular choice for low-beam and fog light applications. It offers balanced light output and energy efficiency for ideal nighttime driving.

Single Filament Halogen Bulb:

The H11 is a single filament bulb explicitly designed for low beam applications. It provides consistent, reliable light output and delivers a steady source of illumination.

Defined Cutoff:

The H11 bulb features a defined cutoff that directs light forward and downward, reducing glare for oncoming traffic. This is especially useful in urban areas with inadequate street lighting for safer nighttime driving.

Halogen Limiter for Glare Reduction:

Some H11 bulbs come with a grey layer on top to minimize glare. This layer pulls light back into the reflectors, ensuring that the light is focused where it’s needed and not scattered. This feature also helps others drive comfortably.

Light Output and Colour Temperature:

H11 bulbs produce around 1,350 lumens with a colour temperature of 3,200K to 3,500 K. They emit a warm, yellowish light that reduces eye strain and performs well in foggy or rainy conditions.

Energy Consumption:

Running at 55 watts, the H11 bulb balances energy efficiency with adequate illumination, ensuring reliable performance without overloading your vehicle’s electrical system.

Durability and Lifespan:

H11 bulbs are durable, with a lifespan of 500 to 1,000 hours. They are a cost-effective option but require frequent replacements.

Compatibility:

H11 bulbs are commonly used in various vehicles for low-beam headlights and fog lights. It’s essential to check your vehicle’s manual to ensure proper fit and installation.

In well-lit urban areas, the H11 bulb’s defined cutoff and warm light output provide clear visibility without excessive glare. Since traffic volume is much higher in these areas, glare reduction is immensely important for safe driving.

2. 9005 (HB3) Bulb Features

The 9005, also known as HB3, is a high-performing bulb designed primarily for high-beam headlights. It delivers bright and concentrated light for enhanced visibility during nighttime driving.

Single Filament Bulb:

The 9005 bulb also has a single filament design and is optimized for high beam applications. They can come in Halogen or LED variants. The design for 9005 bulbs ensures a focused and intense light output for situations where maximum illumination is needed (rural areas, long drives, mountain or forest areas, etc).

High Beam Application:

9005 bulbs are specifically designed for high beams, producing a bright and concentrated light that illuminates long distances. This makes them particularly effective for nighttime driving on highways or rural roads, where visibility over a greater distance is crucial.

Light Pattern:

The 9005 bulb creates a long and narrow light pattern, extending the reach of illumination down the road. Such a long illumination helps drivers spot obstacles, road signs, and other vehicles from afar, enhancing safety during high-speed or low-light conditions.

Brightness and Power Consumption:

These bulbs typically produce between 1,700 and 2,000 lumens, depending on the manufacturer, and operate at 65 watts. This combination provides a powerful and bright beam that is essential for high beam functionality.

Colour Temperature:

The 9005 bulb typically has a colour temperature ranging from 5,000K to 6,000K, resulting in a bright white light. It improves visibility and reduces eye strain for comfortable nighttime driving.

Durability and Lifespan:

Built for durability, 9005 bulbs can last for several years, depending on usage and driving conditions. They are designed to withstand the high temperatures associated with their powerful light output.

Compatibility:

While primarily used for high beams, 9005 bulbs can also be found in some low-beam and fog light applications. However, H8 and H11 are more likely to be in fog lights. Remember, these lights have distinct housings and wiring connectors.

So, you can’t simply swap an H11 with a 9005 bulb. It is essential to check your vehicle’s specifications to ensure compatibility before purchase.

9005 Halogen Bulbs vs LED and HID Technology

Halogen Bulbs:

H11 halogen bulbs typically last around 270 hours, while 9005 (HB3) halogen bulbs have a slightly longer lifespan of about 320 hours. H11 bulbs are designed for low beam use with moderate light output and manageable heat, while 9005 bulbs, used for high beams, handle brighter light and more heat but are built to endure these conditions.

LED Bulbs:

LED bulbs can last up to a staggering 50,000 hours. They are a more cost-effective and low-maintenance choice than the traditional halogens. They are more resistant to shock and vibration, and their lower heat generation contributes to their extended lifespan.

Heat Management:

Halogen bulbs like the H11 and 9005 produce significant heat that requires proper ventilation to avoid overheating. LED bulbs, however, feature built-in heat sinks and cooling systems, efficiently managing heat and maintaining performance over time.

Performance and Environmental Impact:

Halogen bulbs tend to dim as the filament wears out, reducing their effectiveness before eventual burnout. LEDs, on the other hand, maintain brightness longer and degrade gradually, offering consistent performance.

Additionally, LEDs have a lower environmental impact due to their longer lifespan and energy efficiency, which eventually leads to reduced waste compared to the more frequently replaced halogen bulbs.

How to Upgrade Your Headlights

Upgrading to LED or HID bulbs can significantly improve your vehicle’s lighting performance. LED options, like those from Carlightvision, offer bright, white light and can last up to 50,000 hours.

These LEDs are known for more light and long-range illumination, which can be particularly useful for night driving. Carlightvision LEDs are remarkable for their effective heat dissipation and focused beam pattern.

HID bulbs from popular brands provide powerful, bright light with colour temperatures from 4,300K to 12,000 K.

They offer superior brightness and longer lifespans compared to halogen bulbs. If you’re looking to enhance your driving experience, both LED and HID upgrades will give you improved visibility, durability, and energy efficiency.

Fog Lights and Headlight Compatibility

Using H11 as a Substitute for HB3 (9005) Fog Lights

Although H11 and HB3 (9005) are single filament bulbs, they are distinctly built and aren’t directly interchangeable. Their holding areas and power ports are different. Even if you somehow found an unauthorised way to mount an H11 on an HB3 dedicated slot, the results won’t be worth it. They have different wattage ratings that’ll damage the filament soon.

Some of the advanced LED bulbs, however, can substitute an entire series of bulbs (H8, H9, H11, etc.). LED headlight bulbs are widely adopted in many vehicles to produce more output from less power.

So, we recommend you stick to your user manual, use a specific replacement for your original bulb, and avoid improvisations. Review the electrical specifications of dedicated fog light bulbs to pinpoint the exact usable model.

How to Make a 9005 (HB3) Fit in an H11 Headlight?

Fitting a 9005 (HB3) bulb into an H11 headlight is not advisable due to several key issues. With enough DIY skills, you could make them fit. But the simple answer is you shouldn’t. Here’s why;

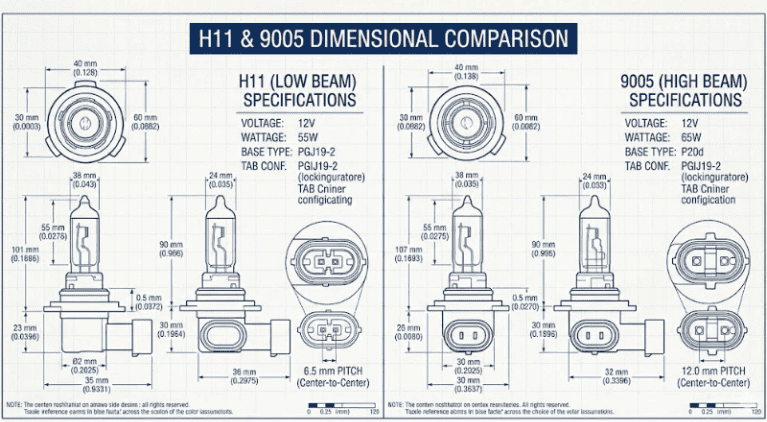

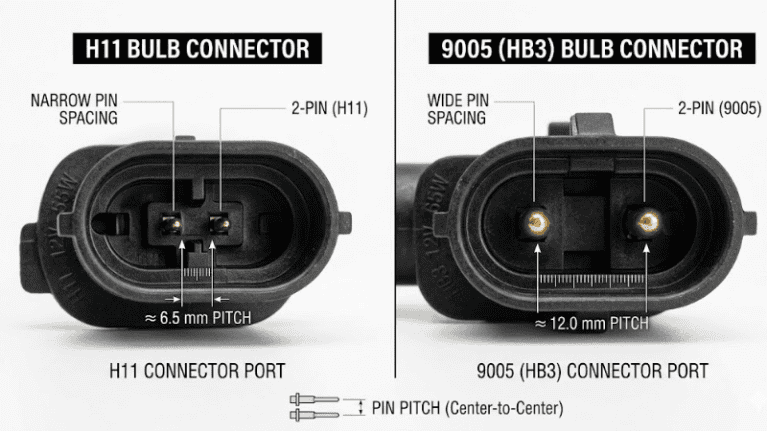

Firstly, the 9005 and H11 bulbs have different base types and connectors, making them incompatible by design. The 9005 uses a P20d base, while the H11 uses a PGJ19-2 base. The 9005 (HB3) has wider-set pins and a larger connector, while the H11 features pins that are closer together and a smaller connector.

Additionally, the 9005 (HB3) lacks the tiny plastic tabs found on the H11 plug casing, which are used to secure the H11 bulb in place.

Secondly, the wattage of the 9005 bulb is higher, typically 65 watts, compared to the H11’s 55 watts. Using a higher wattage bulb can lead to overheating and potential damage to your headlight assembly and vehicle wiring. This wattage mismatch can also cause electrical issues, such as blown fuses.

Performance and safety are also concerns. The 9005 bulb does not have a top coating since it’s designed for high beams. It has a beam pattern different from the H11, which is intended for low beams. Installing a high-beam bulb in a low-beam socket can result in improper light distribution, increased glare, and safety risks.

Lastly, such modifications might violate local regulations and void your vehicle’s warranty. This can lead to fines, failed inspections, and the need for costly repairs.

Conclusion

Start by consulting your owner’s manual to identify the correct replacement bulb for your vehicle. Alternatively, use a bulb finder tool to get recommendations based on your vehicle’s details. When upgrading to LED bulbs, choose ones that match the size, shape, and position of your original halogen bulbs.

Opt for plug-and-play LED headlight bulbs to simplify the installation process. Also, pay attention to heat management and lumens output to ensure you select the brightest and most efficient LED bulbs for optimal visibility and performance.

Bulk Buy H11 and 9005 LED Headlight Bulbs

Remember, understanding headlight bulbs and their distinct designs is a prerequisite for any upgrade or modification. If you’re feeling lost within all this technical jargon, feel free to reach out to experts. Here at Carlightvision, we’re ready to assist you with any queries regarding your car’s headlights. Say hi!

Frequently Asked Questions (H11 vs. 9005)

Q1: Can I modify a 9005 bulb to fit an H11 socket?

A: While some “DIYers” trim the plastic tabs to fit a 9005 into an H11 housing to get more light (the “9005 to H11 conversion”), we do not recommend it. The 9005 runs hotter and lacks the glare shield, which can melt your housing or dangerously blind other drivers.

Q2: Why does my car use both H11 and 9005?

A: Many modern vehicles use a “dual-beam” setup. The H11 serves as your everyday low beam for city driving, while the 9005 acts as the high beam for dark highways and rural roads.

Q3: Should I upgrade both to LED at the same time?

A: Yes. Replacing both ensures a consistent color temperature (usually 6000K-6500K Cool White). This prevents the “mismatched” look of white low beams and yellow halogen high beams.
