H1 vs H4 vs H7 Bulbs: Which One Fits Your Car?

Want to upgrade your vehicle’s headlights but don’t know the difference between H1, H4, and H7? Understanding the differences is essential because each bulb is designed for a specific vehicle setup and performance needs.

Picking the wrong type can result in poor visibility, glare, or a bulb that simply won’t fit.

In this guide, we’ll break down the real differences and help you find the best option for your vehicle.

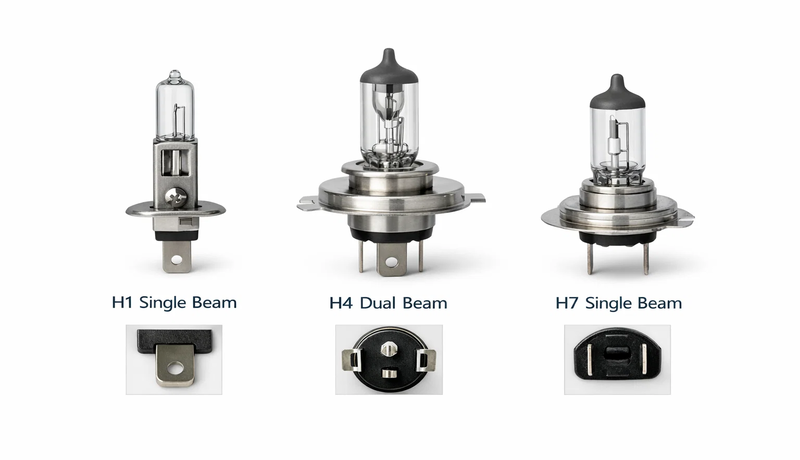

What are H1, H4, H7 Bulbs?

When replacing or upgrading your headlight bulb, it’s important to understand the differences between H1, H4, and H7 types. Each bulb is designed for a specific function, with different beam patterns, structures, and installation methods inside the headlight assembly.

H1 Bulb: Simple and Functional

Main Features

• Beam Type: Single beam (high beam or fog)
• Power: Typically 55W
• Connection: Single pin

H1 bulbs are used for focused lighting tasks like high beams or fog lights. They produce a fixed beam pattern and are mostly used alongside other bulbs in the headlight system.

Benefits

• It’s a budget-friendly option.
• The installation is simple and quick.
• Available in halogen and LED.

Limitations

• Only supports one beam function.
• Lower efficiency compared to newer options.

H4 Bulb: Dual Function in One

Main Features

• Beam Type: Dual beam (low + high)
• Power: Typically 60/55W
• Connection: Three-pin design

H4 bulbs combine both low and high beams in one unit. They are commonly used in older vehicles, motorcycles, and models with a single headlight setup.

Benefits

• Two functions in one bulb.
• Cost-effective and space-saving.
• Easy replacement and widely available.

The internal design lets the bulb switch between beam patterns. It’s a flexible choice without the need for separate bulbs. If your vehicle uses this setup, it simplifies maintenance and reduces the need to purchase multiple bulbs.

H7 Bulb: Built for Modern Systems

Main Features

• Beam Type: Single beam (mainly low beam)
• Power: Typically 55W
• Connection: Two pins

H7 bulbs are designed for modern vehicles where each beam has a separate bulb. They provide better light focus and improved road coverage.

Benefits

• It provides brighter and more precise light output.
• Better nighttime visibility.
• Compatible with LED upgrades.

Limitations

• Requires separate bulbs for high and low beams.
• Slightly higher cost.

Many newer sedans and SUVs use H7 bulbs because they support better visibility. They are often compatible with LED upgrade options.

The main difference between H1, H4, and H7 bulbs lies in their beam type, socket design, and installation method. Even if bulbs look similar, they are not interchangeable, so always check compatibility before buying.

What Are the Real Differences in Performance and Use?

Understanding the real difference between these bulbs gives clarity before making a decision.

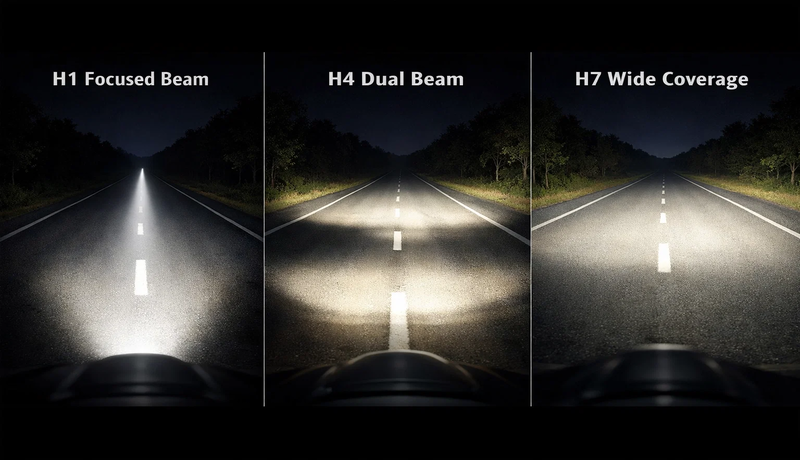

Beam Pattern

Each bulb type is designed to provide a specific beam pattern, which directly affects your driving experience:

• H1 Bulb: It produces a concentrated beam, which is ideal for high beam or fog applications. Ideal for long-distance visibility or targeted lighting.
• H4 Bulb: These bulbs offer a dual-beam function. The low beam provides safe visibility for oncoming traffic, and the high beam delivers stronger output for dark roads.
• H7 Bulb: It is known for its clean beam cutoff and wide coverage. It reduces glare and improves nighttime driving performance, especially in urban environments.

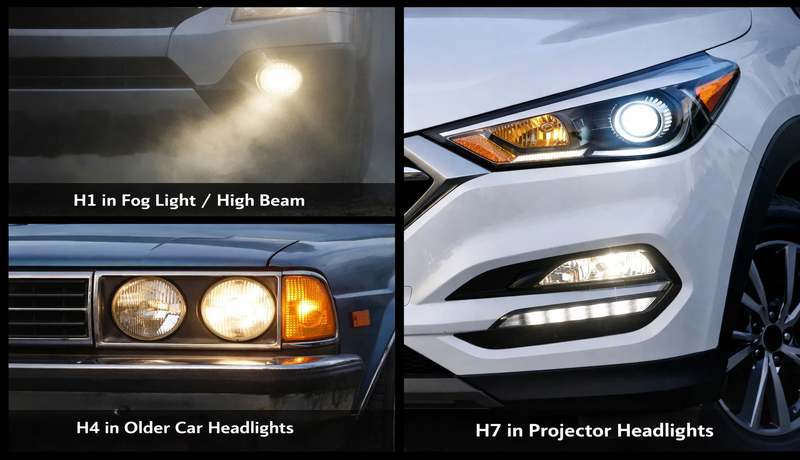

Vehicle Applications

Every vehicle uses a specific bulb type because its headlight system is designed differently.

H1 bulbs are commonly installed in vehicles that use separate bulbs for each function. You’ll usually find them in high beam headlights, fog lights, or auxiliary lighting systems. Ideally used where a focused and direct beam is needed.

H4 bulbs are mostly used in older cars, trucks, and motorcycles that rely on a single bulb for low and high beams. This setup makes maintenance easier. So you don’t need to replace multiple bulbs for different functions.

H7 bulbs are widely used in modern sedans and SUVs, and in vehicles equipped with projector headlights. They are designed for low beam use. It offers better road coverage and is a popular choice in newer lighting systems.

Which Is Better for Night Driving?

H7 systems often provide better low-beam visibility because modern vehicles use separate dedicated optics for low-beam performance.

Its design provides better road coverage, improved performance, and reduced glare. It’s a preferred option for modern driving conditions. However, the “best” choice always depends on your vehicle type and headlight design.

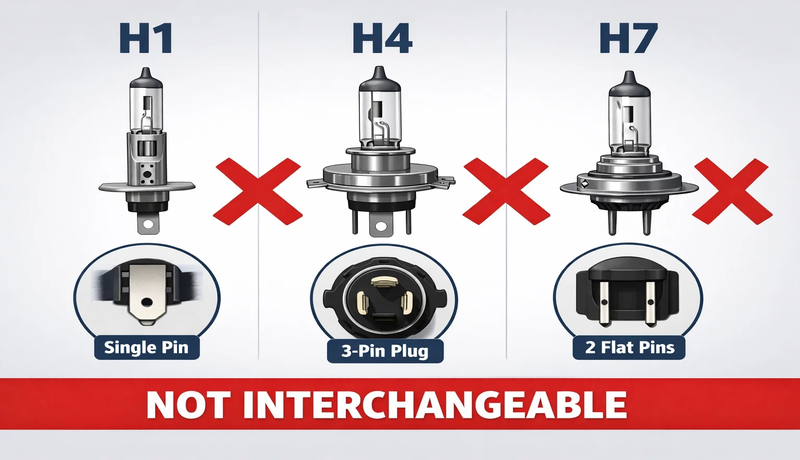

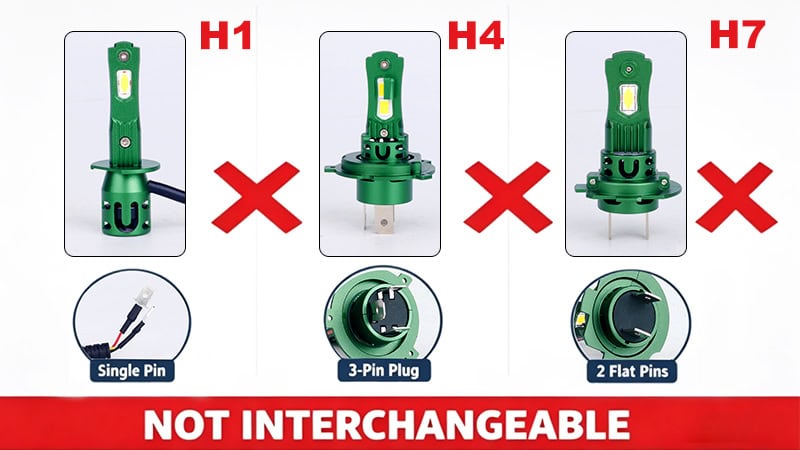

Can H1, H4, and H7 Be Interchanged?

No, they are not interchangeable. Each bulb is designed for different needs. Installing an incorrect bulb can lead to glare for oncoming traffic, poor visibility, and even safety issues. Their differences are clear:

• Base design: Each bulb has a unique base that fits only a specific socket.
• Pin layout: The electrical connections vary, so forcing a bulb into the wrong socket won’t work.
• Focal point: Each bulb is designed to align perfectly within the headlight housing. Using the wrong type can distort the beam pattern.

Which Bulb Should You Choose?

Choosing between H1, H4, and H7 depends on your vehicle, driving needs, and future plans, like an upgrade.

Choose H1 if

• You are replacing a high-beam bulb.
• You need a fog light upgrade.
• You want a budget-friendly option.

H1 bulbs are simple, reliable, and easy to install. If your goal is quick replacement without complications, this is a solid choice.

Choose H4 if

• Your vehicle uses one bulb for high and low beams.
• You drive an older vehicle or motorcycle.
• You prefer easy maintenance.

H4 bulbs reduce the need for multiple purchases and simplify the installation process. They are a practical solution for vehicles with a dual-beam system.

Choose H7 if

• You have a modern car or SUV.
• You want better nighttime visibility.
• You are planning an LED upgrade.

H7 bulbs are optimized for projector and reflector low-beam systems, delivering a sharper cutoff and wider road illumination. If you’re looking for a noticeable improvement in light output, this is usually the best option.

Important Tip:

Always confirm the correct bulb type using your owner’s manual or a reliable vehicle bulb finder tool. If you don’t have access to your manual, check the part number on your old bulb or consult a trusted mechanic for help verifying the right type.

Taking a few minutes to confirm this information can save you time, money, and unnecessary returns. Once you have the correct bulb, follow the installation steps in your owner’s manual or seek professional assistance if needed.

Conclusion

H1, H4, and H7 bulbs are designed to work differently in different conditions. Do not just focus on brightness when choosing a bulb. Pay attention to compatibility, beam pattern, and your vehicle’s requirements.

The right choice can significantly improve your driving experience. Take a moment to confirm your bulb type, review your options, and choose a solution that fits your needs today and any upgrades you’re planning tomorrow.

Find the Right Bulb at Carlight Vision

At Carlight Vision, we help businesses and individual buyers find the right lighting solutions without confusion. Whether you’re purchasing in bulk or replacing a single bulb, our products are designed for reliable performance and easy compatibility.

Need bulk H1, H4, or H7 LED upgrades for your automotive business? Contact Carlight Vision for OEM-compatible solutions, fast shipping, and wholesale pricing.
